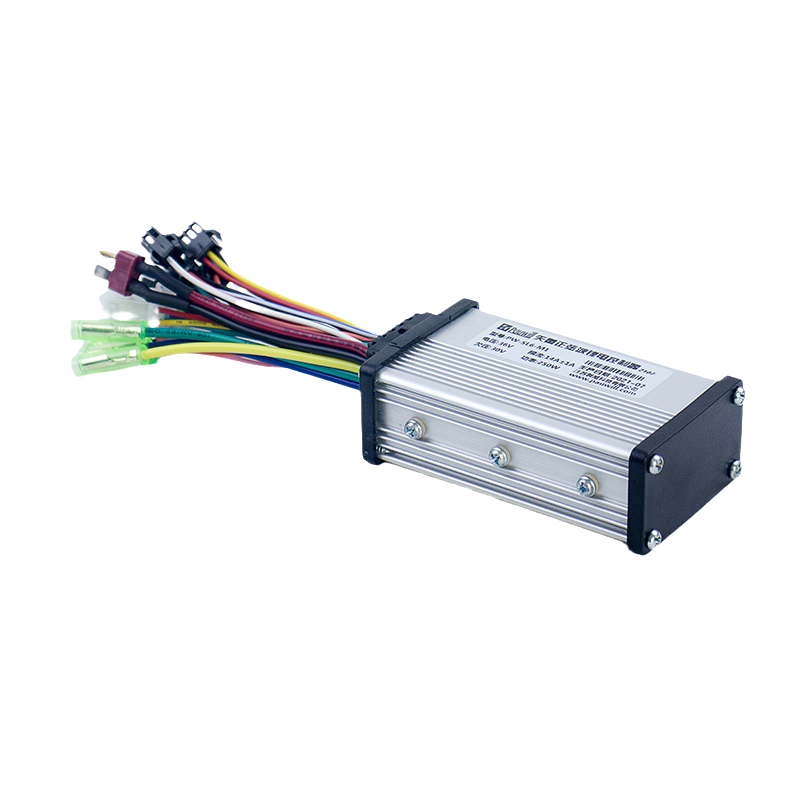

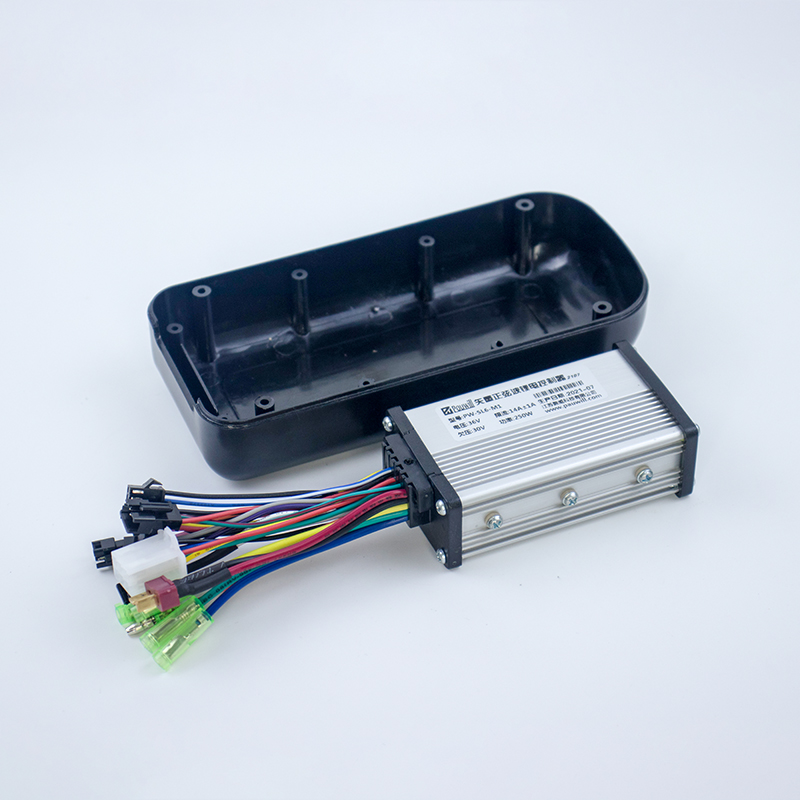

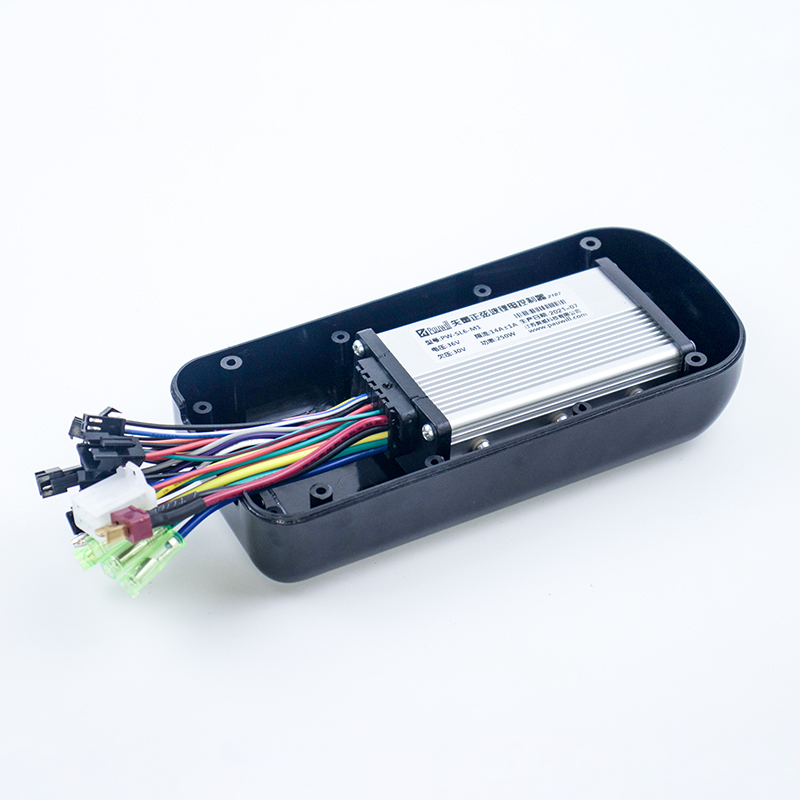

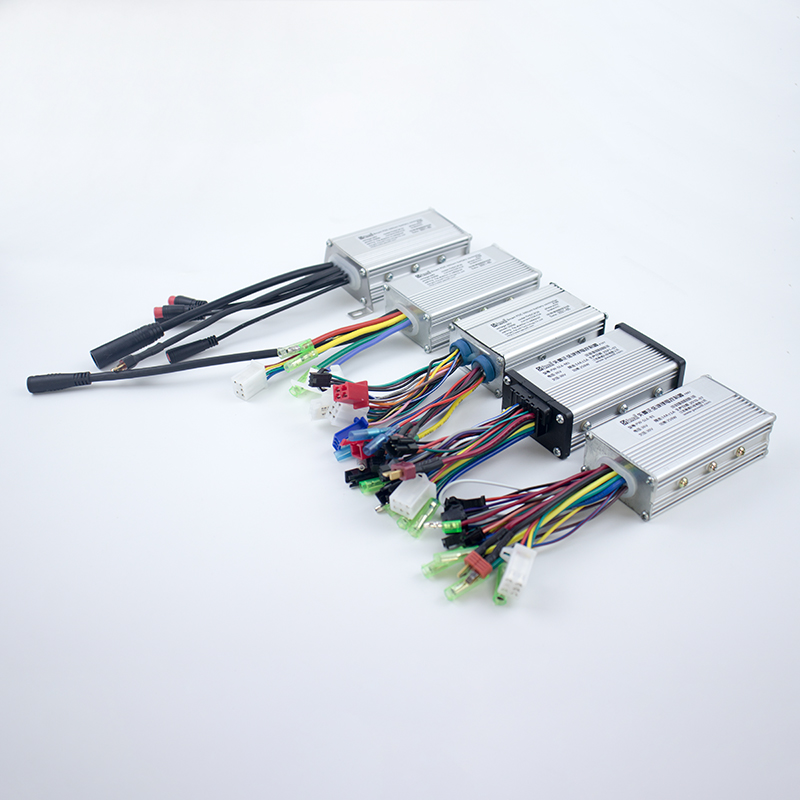

Mini FOC controller
- Size:82 * 53 * 32 mm
- Weight:200g
- Cable length :all about 10-13cm
- Mosfets:6 mosfets
- Maximum current:15±1A
- Rated voltage:DC36V/48V
- Speed set:1-4.2V
- Rated current:7A
- Brake input :Low-Level
- Low voltage protection:DC30/40±0.5V
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
- 1.MR controller can only be compatible with MR display (they have the same communication protocols). Please make sure your system is a MR system. Please check before placing an order.
- 2. Please contact us if you are not sure which is suitable for you or have further questions by Email.
- 3. This controller only work with Kunteng brushless motor and LCD, the controller is not suitable for scooters.
- 4. Working voltage: 36V or 48V universal (supports both voltages)
- 5. Suitable for brushless gear motor 250W 350W
- 6. This is a square wave controller.
- 7.cable length is measured by hand, there may be some differences, please understand.
- 8.If you ordered it without discussion, we will reject the sales return due to the matching of things. Hope you understand, thanks!
- 9.light/bulb for our MR controller, it must be around 70mA (less than 100mA) or the controller will be damaged. I suggest you don’t use the front and rear lights at the same time.
